JLU-350

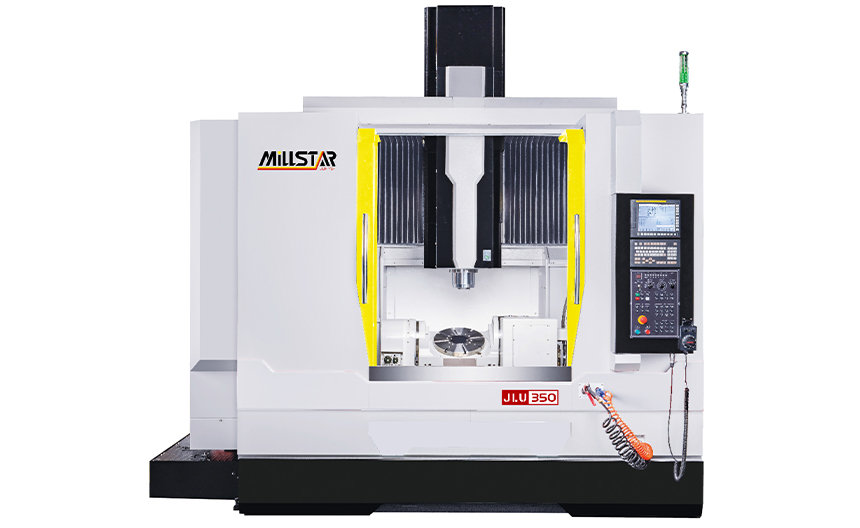

JLU-350 4+1 Axis Vertical Machining Center

4+1 Axis Vertical Machining Center

  • Compact construction with high stability.
  • Heavy-duty roller type linear guide ways on X / Y / Z axes.
  • Equipped with a high-precision tilting rotary table (A / C axis).
  • 5 axis simultaneous machining allows for machining complex parts with high efficiency and high accuracy.
  • 12,000 rpm direct drive spindle features low vibration, low noise, and low thermal growth.
  • BT-40 spindle taper.
  • Rapid traverse rates on X / Y / Z axes 36 m/min.
  • Equipped with a 24-tool magazine.
Model JLU-350
Travel X axis Travel 1020 mm
Y axis Travel 610 mm
Z axis Travel 510 mm
Distance from Spindle Nose to Table 100 ~610 mm
Table Table Diameter 350 mm
Max. Table Load 200 kg
T-slot Size (No×Size×Pitch) 8×12×45° mm
Sindle Spindle Speed 12,000 rmp
Drive Method Direct Drive
Spindle Taper #40
A axis TILTING AXIS [A axis]
Tilting Angle -120°~+30°
Max. Speed 40 rmp
Minimum Split Angle 0.001°
C axis Rotary Table C axis
C axis Rotating Angle 360°
Max. Speed 33.3 rmp
Minimum Split Angle 0.001°
ATC
TOOL MAGZING LOADING
Tool Shank #40
Tool Magzine Loading Capacity 24 pcs
Rapid Feed Rates (X/Y/Z) 36/36/36 m/min
Cutting Feed Rate 1~20,000 mm/min
Standard Accessories: Optional Accessories:
1. Lubrication system 1. Linear scale
2. Fully enclosed splashguard 2. Tool length measurement
3. Manual roof splashguard 3. Workpiece measurement
4. Spindle / AC axis coolant system 4. Oil mist collector
5. Chip cart 5. Auto front door
6. Chip conveyor 6. Auto roof splashguard
7. Air conditioner for electrical cabinet 7. CE certified
8. LED working lamp 8. Coolant through spindle (CTS)
9. USB 9. Spindle thermal displacement compensation
10. Ethernet 10. Whole structure thermal displacement compensation
11. Air gun 11. Spindle ring spray
12. Water gun 12. Oil skimmer
13. Spindle ring spray, Spindle outside air spray 2 output 13. RS-232 interface
