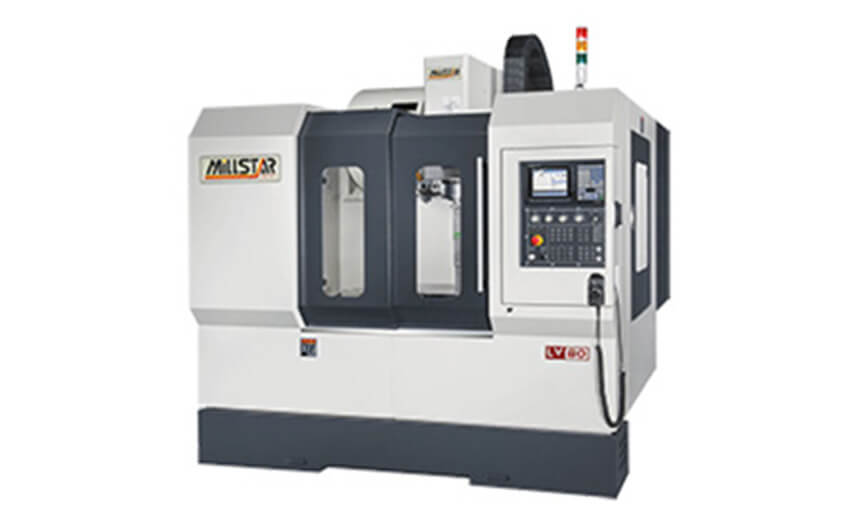

LV80

LV80

High Speed Type LV Series Vertical Machining Center

(BT40) X800 / Y500 / Z500

  • Three axes ball screws have adapted direct transmission design, which clears the noise during transmission, cutting down temperature, stabling accuracy and also increases machining rigidity.
  • The ATC system and all machine functions have been thoroughly tested.
  • LASER Check, Ball test and Spindle Dynamic Balance are performed to ensure the optimum static and dynamic accuracy.
Model LV80
WorK Table 950 X 500 mm
T-slot(sige X number) 80 X 18 mm X 5T
Max. Loading 500kg
Three Axes Travel 800 X 500 X 500mm
Spindle Nose to Worktable Surface 125~625mm
Spindle Center to Column Slide Ways 550mm
Spindle Taper BT40
Spindle Diameter Φ70 mm
Spindle Speed 10000rpm(Belt)
3 axes Slide Way Linear Way
3 axes Cutting Feedrate 10 /10 /10 m/min
3 axes Rapid Feedrate 36 /36 /36 m/min
Tool Magazine type Armless type20 T
Tool Selection Bi-direction shortest path
Max. Tool Diameter X Length Φ100 X 250 mm
Max. Tool Weight 7KG
Tool Shank BT-40
Spindle Motor(cont./30 min.) 7.5/11KW
X/Y/Z axis Servomotor 2.2/2.2/2.0 Kw
X/Y/Z axis Ball Screw Φ36 X Pitch12
Coolant Pump 660W
External Dimension(L X W X H)(Approx) 2180 X 2957 X 2632 mm
Net Weight/ Gross weight (Approx) 4500kg/5000kg
Splash Guard Full Splash Guard
Shipment Require 40”HQ(4 sets)
Coolant Tank Capacity 260L
Standard Accessories: Optional Accessories:
1. Spindle air blow system 1. CTS 20/30/50 bar(coolant throught spindle)
2. Automatic lubrication system 2. 24 tools arm type ATC,BT40(LV80,LV100)
3. Mitsubishi M80 controller(8.4” LCD display) 3. 32 tools chain type ATC,BT50(LV1400-2000)
4. 20 tools Armless type ATC ,BT40(LV80,LV100) 4. Renishaw automatic tool length measuring device
5. 24 tools Arm type ATC,BT40/BT50(LV1400-2000) 5. Renishaw automatic work piece measuring device
6. Screw Steelbelt type chip conveyor with cart(LV80~LV100) 6. Steelbelt(Chain)type chip conveyor with cart(LV80,LV100)
7. Steelbelt(Chain)type chip conveyor with cart(LV1400-2000) 7. 4th axis preparation(IO connect only,not include motor&drive)
8. Spindle speed 6000 rpm,BT50,Belt drive(LV1400-2000) 8. Spindle speed 8000 rpm,BT50,Direct drive(LV1400-2000)
9. Spindle speed 8000 rpm,BT40,belt drive(LV1400-2000) 9. Spindle speed 12,000~15,000 rpm,BT40,Direct drive(LV60~LV100)
10. Spindle speed 10,000 rpm,BT40,belt drive(LV60-100) 10. Spindle speed 4500~6000 rpm BT50,Powerful Gear Head(LV1400-2000)
11. Ragid tapping 11. Spindle speed 10,000/12,000/15,000 rpm,BT40,Direct drive(LV1400-2000)
12. Auto power off 12. CNC 4th axis Rotary table with drive,motor
13. Coolant system 13. Fanuc/Siemens/Heidenhain controller
14. Heat exchanger 14. Machine half cover(LV1400-2000)
15. RS 232 interface 15. Air conditioner for electric cabinet
16. Spindle oil cooler 16. Heidenhain linear scale
17. Fully splash covere 17. Chip flushing system
18. M code air blasting 18. 10.4” LCD dispaly
19. Tool box with tools 19. Oil skimmer
20. Quartz working light 20. CE Standrad
21. Water gun and air gun
22. Leveing kits and blocks
23. Transformer(Export noly)
