V520
Having begun manufacturing milling machines in 1991, Millstar PRECISION MACHINERY has become a leading brand within the global market. Inorder to keep in step with global trends in technological advancements, Millstar has constantly upgraded its machines with the latest innovations in CNC machining equipment.
From design to manufacture, assembling and inspection, all our bed milling machines are strictly controlled at every stage. We ensure our machines' quality and stability.
- Equipped with integrated automatic lubricating system
- Equipped with Cooling system
- Each travel axis is equipped with limit switches to ensure satety.
- The X,Y axis sideways coated with low-friction property material TURCITE-B
- Standard electrical and electronic components are adopted. Electrical and electronic circuits are properly concealed.
- Controls are integrated on a panel, enhancing simple and easy operation thus avoiding fatigue and increase working efficiency.
- Feed change with inverter for variable speed change which design is easy to change speed.

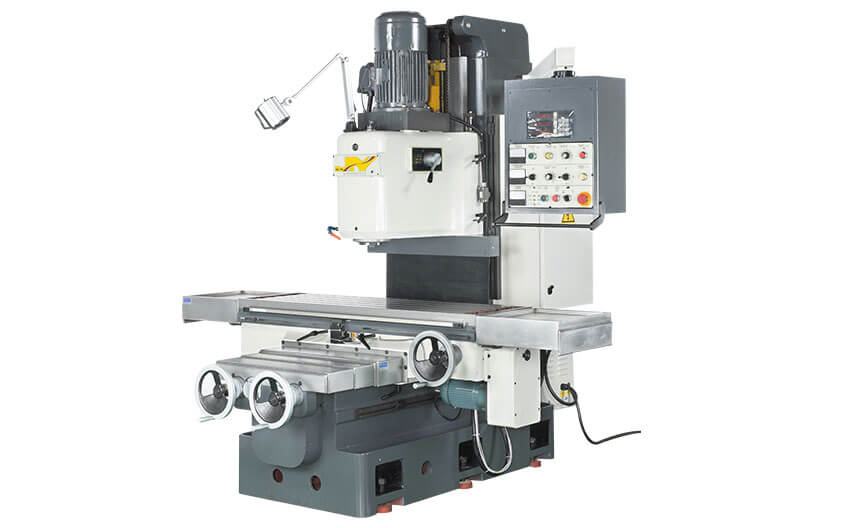

| Model | V520 3 Axis Vertical Milling Machine | |
|---|---|---|
| Table | Table size | 1500 X 450mm |
| X/Y/Z 3 axes travel | 1100/500/500mm | |
| T-slot(size x number x distance | 18 X 5 X 80 | |
| 3 axes rapid feede rate | 25~1500(30~6000 PC-Based) | |
| 3 axes cutting feede rate | 1500(30~6000 PC-Based) | |
| Cutting Range Reference | Cutting length | 1100 |
| Cutting width | 490 | |
| Cutting height | 500 | |
| Loading weight | 1000 | |
| Cutting Range Reference | Spindle speed(60HZ) | 45-1500 rpm variable |
| Spindle taper | NT50 | |
| Spindle nose to table surface distance | 100-600 | |
| Spindle center to slide way surface distance | 520 | |
| Quill feedrate | NA | |
| Turret head swivel angle | NA | |
| Quill travel | NA | |
| horizontal spindle | Spindle speed(60HZ) | NA |
| Spindle taper | NA | |
| Spindle center to table surface distance | NA | |
| Spindle nose to table edge distance | NA | |
| Motor | Spindle motor | 10HP X 4P AC |
| X axis feeding motor | 0.75KW | |
| Y axis feeding motor | 0.75KW | |
| Z axis feeding motor | 0.75KW | |
| Dimensions | Net weight | 3800kg |
| Gross weight | 4600kg (40”HQ) | |
| Floor plan(L X W X H) | 3500 X 2900 X 2900 | |
| 3 Axis Vertical Milling Machine Standard Accessories: | 3 Axis Vertical Milling Machine Optional Accessories: |
| 1. Automatic lubricating system | 1. Ball screw(X,Y) |
| 2. Cooling system | 2. Air power draw bar(Vertical and horizontal) |
| 3. Tool box | 3. 4th axis rotary table(Manual) (1o,5o,15o) |
| 4. Spindle draw bar screw | 4. Electric magnet(400X800,500X1000) |
| 5. Leveling pads | 5. Spindle braking equipment(Vertical and horizontal spindle) |
| 6. Leveling screws | 6. Vice(16”,20”) |
| 7. Air operated Y,Z axis lock(480,550,650,780) | 7. End milling collet chuck set |
| 8. Transformer(Export only) | 8. Universal clamping set |
| 9. Coolant tray | |
| 10. Chip guard | |
| 11. Half cover for work table | |
| 12. 3 axes D.R.O(Fagor brand) | |
| 13. CE norm |
