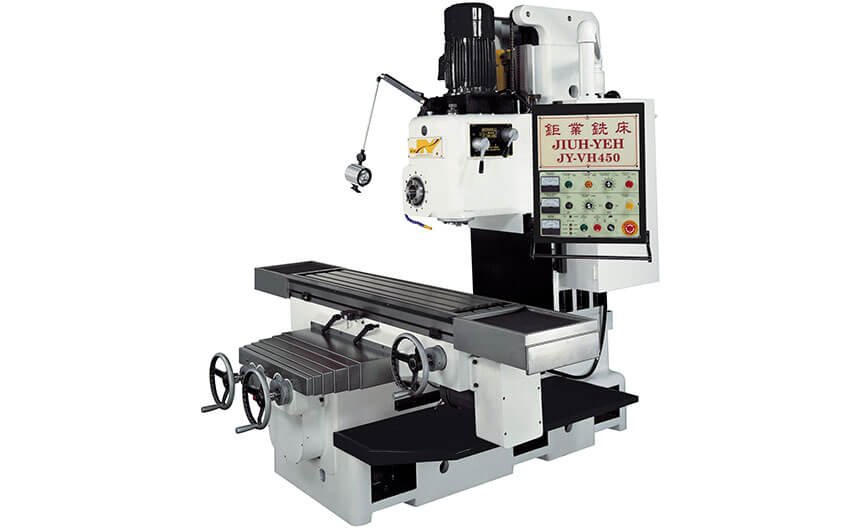

VH450

VH450

VH series (Vertical & Horizontal Head) Conventional Milling Machine

X1100 / Y720 / Z780

  • The bed, column, saddle and table are manufactured from high quality Meehanite cast iron, stress relieved for high stability.
  • All slideways are hardened, precision ground, then coated with Turcite-B for maximum wear resistance.
  • The X, Y axes are protected by stainless steel telescopic covers.
  • The X, Y axis drive employs high precision lead screws, combined with double nuts, ensuring high accuracy of feed.
  • The spindle runs on precise angular contact bearings.
  • The spindle is precision manufactured from SCM21 alloy steel, heat treated and precision ground.
  • All gears in milling head are hardened and precision ground for quiet running.
  • The X-axis feed is driven by a high torque servo motor, providing variable feed speed.
  • The powerful spindle motor gives a high chip removal rate.
  • Choice of Fanuc or Mitsubishi CNC controller.
  • All models can be converted into CNC controlled system.
Model VH450
Table Table size 1500 X 450mm
X/Y/Z 3 axes travel 1100/720/780mm
T-slot(size x number x distance 18 X 5 X 80
3 axes rapid feede rate 25~1500(30~6000 PC-Based)
3 axes cutting feede rate 1500(30~6000 PC-Based)
Cutting Range Reference Cutting length 1100
Cutting width 420
Cutting height 500
Loading weight 1000
Cutting Range Reference Spindle speed(60HZ) 45-1500 rpm variable
Spindle taper NT50
Spindle nose to table surface distance 0-617
Spindle center to slide way surface distance 450
Quill feedrate NA
Turret head swivel angle NA
Quill travel NA
horizontal spindle Spindle speed(60HZ) 45-1500 rpm variable
Spindle taper NT50
Spindle center to table surface distance 0-780
Spindle nose to table edge distance 190
Motor Spindle motor 10HP X 4P AC
X axis feeding motor 0.75KW
Y axis feeding motor 0.75KW
Z axis feeding motor 0.75KW
Dimensions Net weight 4200kg
Gross weight 5000kg (40”HQ)
Floor plan(L X W X H) 3500 X 3100 X 2750
Standard Accessories: Optional Accessories:
1. Automatic lubricating system 1. Ball screw(X,Y)
2. Cooling system 2. Air power draw bar(Vertical and horizontal)
3. Tool box 3. 4th axis rotary table(Manual) (1o,5o,15o)
4. Spindle draw bar screw 4. Electric magnet(400X800,500X1000)
5. Leveling pads 5. Spindle braking equipment(Vertical and horizontal spindle)
6. Leveling screws 6. Vice(16”,20”)
7. Air operated Y,Z axis lock(480,550,650,780) 7. End milling collet chuck set
8. Transformer(Export only) 8. Universal clamping set
  9. Coolant tray
  10. Chip guard
  11. Half cover for work table
  12. 3 axes D.R.O(Fagor brand)
  13. CE norm
